Phonograph with 3 Valve Receiver Telsen Victor 3

Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486823) Kit Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486831) Kit
Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486834) Kit Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486818) Kit
Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486820) Kit Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486822) Kit
Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486824) Kit Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486825) Kit
Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486827) Kit Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486828) Kit
Use red slider bar for more.
Phonograph with 3 Valve Receiver Telsen Victor 3; Unknown - CUSTOM (ID = 2486823) Kit
Unknown - CUSTOM: Phonograph with 3 Valve Receiver Telsen Victor 3 [Kit] ID = 2486823 956x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonograph with 3 Valve Receiver Telsen Victor 3, Unknown - CUSTOM BUILT: GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: GB
Year: 1931 ?? Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 3: HL210 HL2 P220
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (not changer)
Power type and voltage Storage and/or dry batteries / 2; 9; 135 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 40 cm = 15.7 inch
Power out
from Radiomuseum.org Model: Phonograph with 3 Valve Receiver Telsen Victor 3 - Unknown - CUSTOM BUILT: GB
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 520 x 1100 x 520 mm / 20.5 x 43.3 x 20.5 inch
Notes

Probably a modification of an earlier mechanical phonograph that has been fitted with a 3 Valve Receiver.

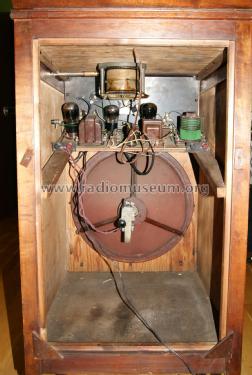

The radio chassis is made from a kit sold by Telsen, the "Victor 3". It has been fitted to a cabinet which possibly housed a Mechanical wind-up phonograph together with a loudspeaker.

Similar to the Telsen 323 kit.



Model page created by Francisco Rivadulla Prieto. See "Data change" for further contributors.
