PRT-4 {ПРТ-4}

PRT-4 {ПРТ-4}; Leningrad Kozitsky (ID = 673344) Radio

PRT-4 {ПРТ-4}; Leningrad Kozitsky (ID = 673345) Radio
PRT-4 {ПРТ-4}; Leningrad Kozitsky (ID = 673346) Radio PRT-4 {ПРТ-4}; Leningrad Kozitsky (ID = 673347) Radio
Use red slider bar for more.
PRT-4 {ПРТ-4}; Leningrad Kozitsky (ID = 673346) Radio
Leningrad Kozitsky: PRT-4 {ПРТ-4} [Radio] ID = 673346 630x360
Select picture or schematic to display from thumbnails on the right and click for download.
For model PRT-4 {ПРТ-4}, Leningrad Kozitsky Works:
R. Malinin "Radio sets" 1937, Moscow Thanks for Valery Charcenko picture colors

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Kozitsky Works
alternative name

Radiotelegraf Works
Year: 1930 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: УБ-110 or УБ-107 or ПТ-2 УБ-110 or УБ-107 or ПТ-2 УБ-107 or ПТ-2 УБ-132 or ПТ-2
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 4&80 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: PRT-4 {ПРТ-4} - Leningrad Kozitsky Works
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes This radio was used for broadcasting on cable radio network. Coverage 180-2175 m band in four ranges.

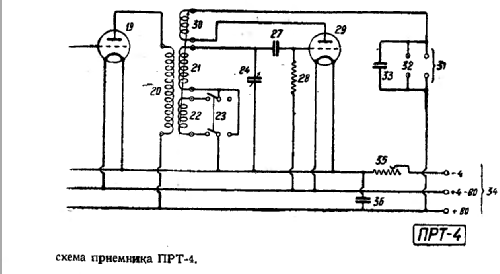

Schemat analogous as radio sets BČN {БЧН} or BČK {БЧК}(see in RMorg).
Mentioned in R. Malinin "Radio sets" 1937, Moscow

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
