Renault Ranger-1 PRC123

Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299266) Radio Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299264) Radio
Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299267) Radio Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299265) Radio
Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299268) Radio Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299269) Radio

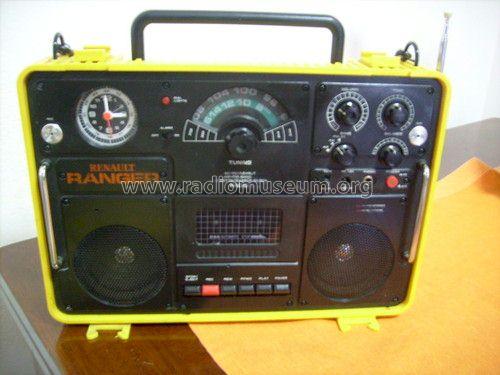

Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 1452144) Radio Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 1452145) Radio
Use red slider bar for more.
Renault Ranger-1 PRC123; Unknown - CUSTOM (ID = 2299266) Radio
Unknown - CUSTOM: Renault Ranger-1 PRC123 [Radio] ID = 2299266 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Renault Ranger-1 PRC123, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 8 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 10 cm = 3.9 inch
Power out 2 W (max.)
from Radiomuseum.org Model: Renault Ranger-1 PRC123 - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 270 x 125 mm / 14.6 x 10.6 x 4.9 inch
Notes

Clock.

controllo volume/tono/bilanciamento - potenza uscita : 1 + 1 Wmax - impedenza altoparlanti 8 Ω - selettore bande: AM/FM/FM Stereo - commutatore radio/tape - interruttore di accensione - presa per cuffia - presa per alimentazione sterna 12 VDC - n. 2 microfoni - led FM stereo/recording - riproduttore di cassette stereo 7 - tasti play/stop/ff.ww./rew/pause/rec -  automatic stop - maniglie e cinghia di trasporto - frequency range: FM 88/108 MHz - AM 535/1605 kHz - power consumption 8 W - batteria per orologio: 3 V - dial light - commutatore alarm on/off.

Made in Taiwan.

Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
