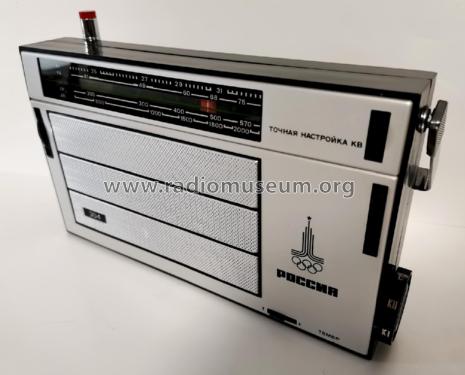

For model Rossiâ {Россия} 304, Industrial Union Poliot, Cheliabinsk

Country:  Soviet Union
Manufacturer / Brand:  Industrial Union Poliot, Cheliabinsk
alternative name

Cheliabinsk Radio Works IU "Poliot"
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details

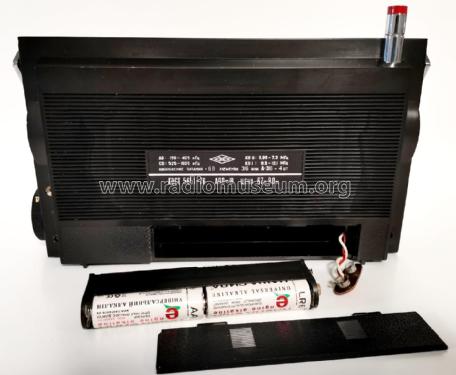

Power type and voltage Dry Batteries / 4× 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Rossiâ {Россия} 304 - Industrial Union Poliot,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 125 x 47 mm / 8.5 x 4.9 x 1.9 inch
Notes Similar to Rossiya-301, but on the market was sold under both markings.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

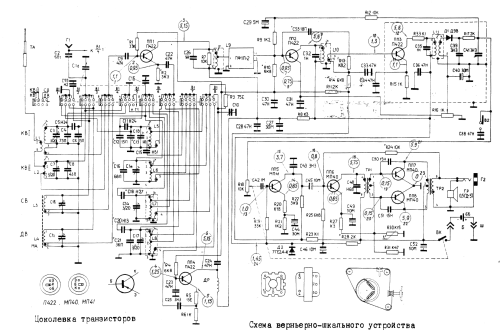

Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1972-75

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
