RZI-4T {РЗИ-4Т}

RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178173) Commercial Re RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178178) Commercial Re

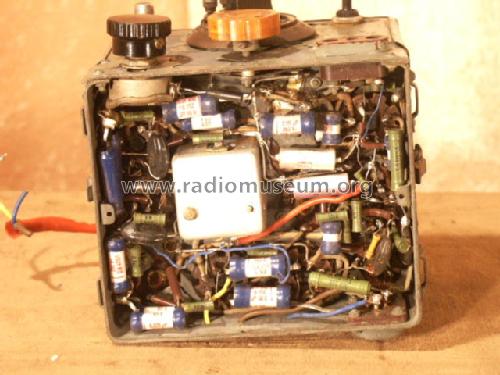

RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178176) Commercial Re RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178174) Commercial Re
RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178175) Commercial Re
Use red slider bar for more.
RZI-4T {РЗИ-4Т}; MILITARY USSR (ID = 178173) Commercial Re
MILITARY USSR: RZI-4T {РЗИ-4Т} [Commercial Re] ID = 178173 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RZI-4T {РЗИ-4Т}, MILITARY USSR (different makers for same model):
eigenes Verkaufsfoto ,,,.antik-technik.de,,

Country:  Soviet Union
Manufacturer / Brand:  MILITARY USSR (different makers for same model)
Year: 1942 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 6: 6K7 6K7 6K7 6K7 6A8 6F6
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RZI-4T {РЗИ-4Т} - MILITARY USSR different makers
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 150 x 150 x 170 mm / 5.9 x 5.9 x 6.7 inch
Notes Receiver, used by sovjet armed forces, range 3,65-6,7 MHz. Part of an communication set for field purposes.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data - - Data from my own collection

Model page created by Peter Wölfel. See "Data change" for further contributors.
