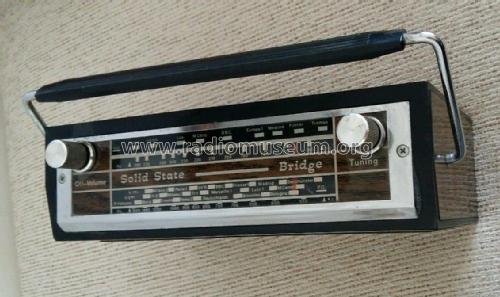

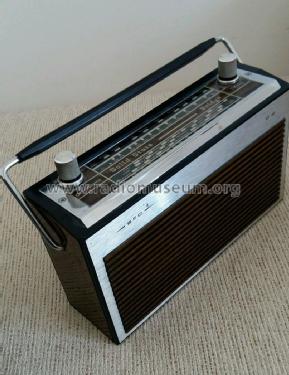

SFC - Solid State Bridge C321

SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279931) Radio SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2252987) Radio
SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2252988) Radio SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2260294) Radio
SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2260296) Radio SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279928) Radio
SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279929) Radio SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279930) Radio
SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279932) Radio
Use red slider bar for more.
SFC - Solid State Bridge C321; Unknown - CUSTOM (ID = 2279931) Radio
Unknown - CUSTOM: SFC - Solid State Bridge C321 [Radio] ID = 2279931 1400x851
Select picture or schematic to display from thumbnails on the right and click for download.
For model SFC - Solid State Bridge C321, Unknown - CUSTOM BUILT: Italy

Country:  Italy
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Italy
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); 2 AF stage(s); Export model
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: SFC - Solid State Bridge C321 - Unknown - CUSTOM BUILT: Italy
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 130 x 67 mm / 9.1 x 5.1 x 2.6 inch
Notes

Export model for France (PO-GO = MW-LW).

The main board is branded Ultrason C321A whereas the small, power supply board is C321B (shown in the picture).

Reported weight is without batteries.

Reported dimensions don't consider the handle.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Aldo Andreani. See "Data change" for further contributors.
