• Country
• Italy

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: Italy

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300012

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

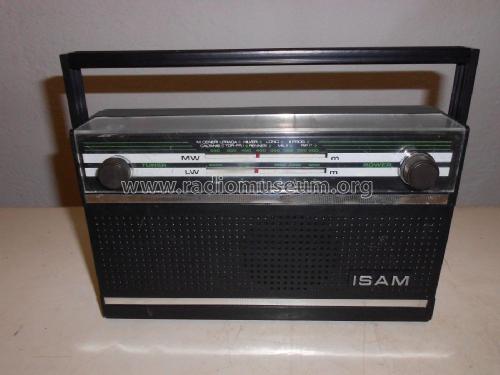

• Model: ISAM Silicon Solid State - Unknown - CUSTOM BUILT: Italy

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 155 x 62 mm / 9.8 x 6.1 x 2.4 inch

• Notes

• controllo volume - maniglia di trasporto - antenna esterna.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
