S.O.M.Y. tr.9/2
Use red slider bar for more.
Unknown - CUSTOM: S.O.M.Y. tr.9/2 [Radio] ID = 2546324 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1963 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common); 2 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 3 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: S.O.M.Y. tr.9/2 - Unknown - CUSTOM BUILT: Italy |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 155 x 93 x 36 mm / 6.1 x 3.7 x 1.4 inch |

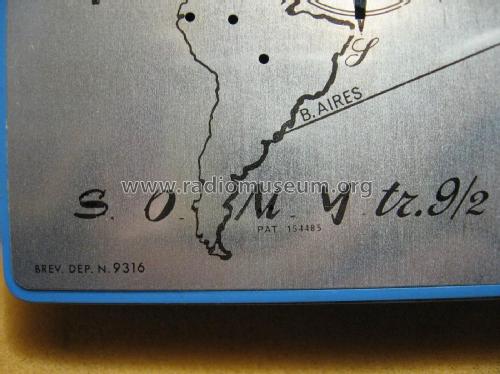

| Notes | Molto simile alla International t.9/2. La lettera M è disegnata in modo che possa essere confusa con una N dando quindi origine al nome SONY. L'antenna a stilo, non collegata al circuito, è montata solo come decorazione. Vedi anche modelli simili riportati sotto Kanyo TR10+Auto. |
Model page created by Aldo Andreani. See "Data change" for further contributors.
