For model Talking Radio Music Man, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details

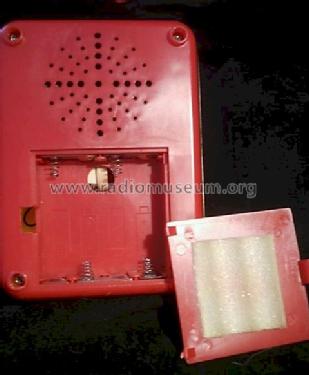

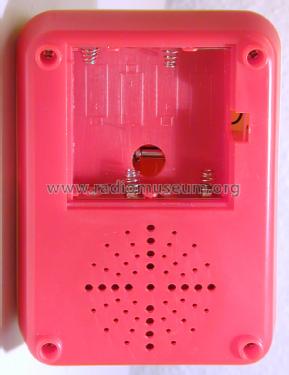

Power type and voltage Dry Batteries / UM3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Talking Radio Music Man - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 125 x 110 x 95 mm / 4.9 x 4.3 x 3.7 inch
Notes

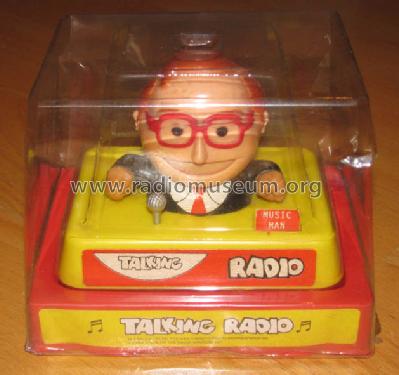

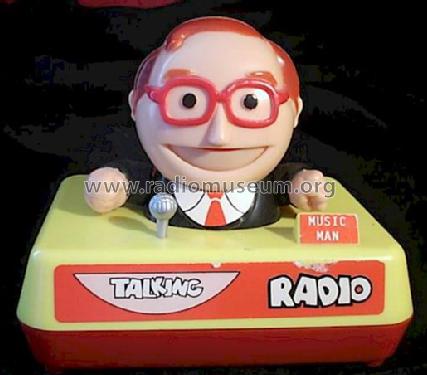

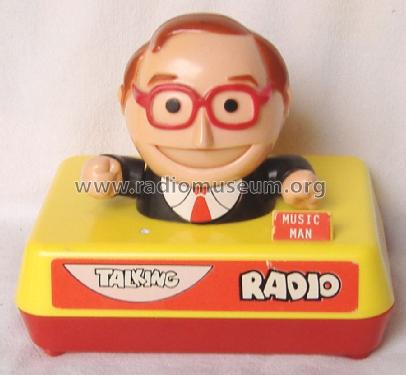

Talking Radio Music Man ; - It really talks: Radioman sitting on yellow table, shielding by a plexi dome, man´s mouth moves corresponding to the radio voice, made in Taiwan. Gross weight incl original packing 0,380kg

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Collector info (Sammler)
