Tip-Top 1000

Tip-Top 1000; Unknown - CUSTOM (ID = 685600) Radio Tip-Top 1000; Unknown - CUSTOM (ID = 685594) Radio
Tip-Top 1000; Unknown - CUSTOM (ID = 685596) Radio Tip-Top 1000; Unknown - CUSTOM (ID = 685593) Radio
Tip-Top 1000; Unknown - CUSTOM (ID = 685595) Radio Tip-Top 1000; Unknown - CUSTOM (ID = 685597) Radio
Tip-Top 1000; Unknown - CUSTOM (ID = 685598) Radio Tip-Top 1000; Unknown - CUSTOM (ID = 1586924) Radio
Tip-Top 1000; Unknown - CUSTOM (ID = 1586925) Radio Tip-Top 1000; Unknown - CUSTOM (ID = 1586926) Radio
Use red slider bar for more.

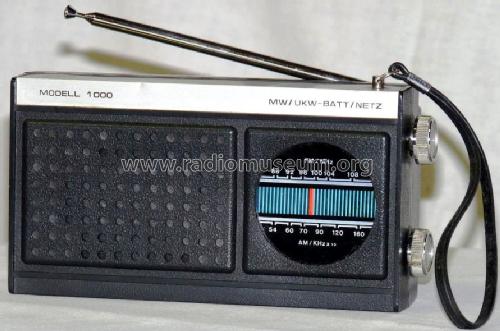

Tip-Top 1000; Unknown - CUSTOM (ID = 685600) Radio
Unknown - CUSTOM: Tip-Top 1000 [Radio] ID = 685600 891x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tip-Top 1000, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Tip-Top 1000 - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 165 x 91 x 50 mm / 6.5 x 3.6 x 2 inch
Notes MW/UKW Batterie-Netz Portable, Frequenzbereich: FM 88 - 108 MHz, AM 540 - 1600 KHz, Ohrhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 65 cm, Ferritantenne 7 cm
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
