Tip-Top UKW MW 10 Transistor

Tip-Top UKW MW 10 Transistor ; Unknown - CUSTOM (ID = 1713800) Radio Tip-Top UKW MW 10 Transistor ; Unknown - CUSTOM (ID = 1713799) Radio
Tip-Top UKW MW 10 Transistor ; Unknown - CUSTOM (ID = 1713801) Radio Tip-Top UKW MW 10 Transistor ; Unknown - CUSTOM (ID = 1713802) Radio
Use red slider bar for more.

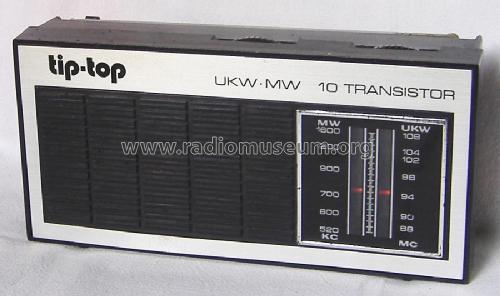

Tip-Top UKW MW 10 Transistor ; Unknown - CUSTOM (ID = 1713800) Radio
Unknown - CUSTOM: Tip-Top UKW MW 10 Transistor [Radio] ID = 1713800 900x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tip-Top UKW MW 10 Transistor, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1973 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 6LR61: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.4 cm = 2.5 inch
Power out
from Radiomuseum.org Model: Tip-Top UKW MW 10 Transistor - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 90 x 48 mm / 7.1 x 3.5 x 1.9 inch
Notes

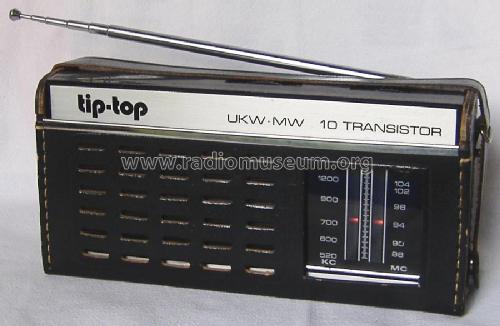

UKW / MW Taschenempfänger in Lederetui mit schwenkbarer Teleskopantenne
und Ohrhöreranschluss, nur Batteriebetrieb.

Net weight (2.2 lb = 1 kg) 0.459 kg / 1 lb 0.2 oz (1.011 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
