Ultrason 4/R
Unknown - CUSTOM BUILT: Italy
- Country
- Italy
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: Italy
- Year
- 1971 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 348471
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ultrason 4/R - Unknown - CUSTOM BUILT: Italy
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 52 x 90 mm / 6.9 x 2 x 3.5 inch
- Notes
-
Autoradio con sintonia a permeabilità variabile. Possibilità con la sostituzione di 10 elementi di funzionare a 6 VDC.
Regolatore di tono a due posizioni.
- Net weight (2.2 lb = 1 kg)
- 0.910 kg / 2 lb 0.1 oz (2.004 lb)
- Mentioned in

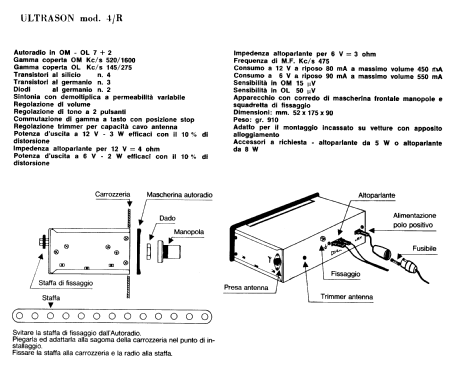

- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
