For model Inconnu - Unknown 11, Unknown - CUSTOM BUILT: France (INCONNU)

Country:  France
Manufacturer / Brand:  Unknown - CUSTOM BUILT: France (INCONNU)
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 6B7 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 466 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: Inconnu - Unknown 11 - Unknown - CUSTOM BUILT: France
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 385 x 485 x 270 mm / 15.2 x 19.1 x 10.6 inch

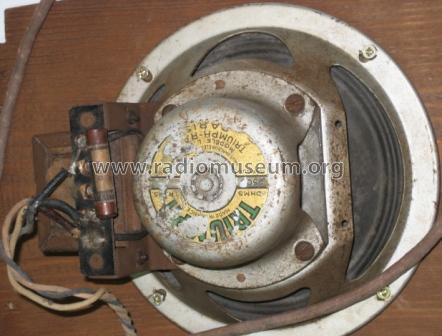

Notes - Loudspeaker "Triumph"
- Label Dial "Graving 571"
- Tube sockets "F.C. Paris"
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Data from my own collection

Model page created by Hernani Capela. See "Data change" for further contributors.
