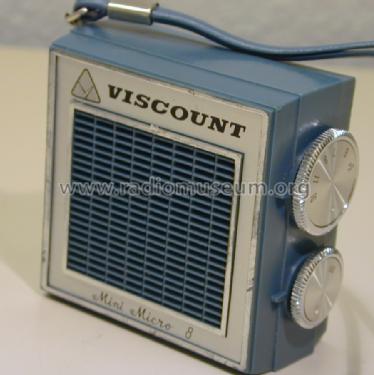

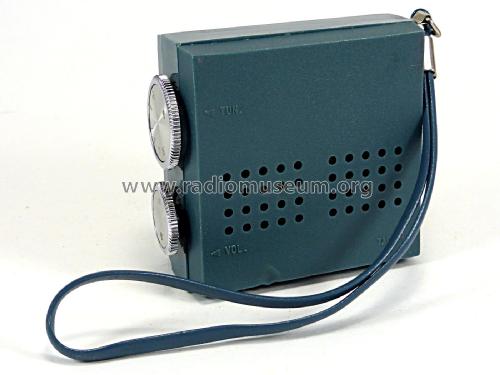

Viscount Mini Micro 8 899

Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350844) Radio Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350848) Radio
Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350846) Radio Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350849) Radio
Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350845) Radio Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350847) Radio
Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350850) Radio Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 1017815) Radio
Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 1017816) Radio Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 1017817) Radio
Use red slider bar for more.
Viscount Mini Micro 8 899; Unknown - CUSTOM (ID = 2350844) Radio
Unknown - CUSTOM: Viscount Mini Micro 8 899 [Radio] ID = 2350844 1400x1399
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viscount Mini Micro 8 899, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Viscount Mini Micro 8 899 - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.63 x 2.63 x 1.38 inch / 67 x 67 x 35 mm
Notes Viscount 899 Mini Micro 8; earphone jack, made in Taiwan. Not to be mistaken for the Japanese Brand Viscount. Gross weight incl full original packing 0.180 kg.g.
Net weight (2.2 lb = 1 kg) 0.130 kg / 0 lb 4.6 oz (0.286 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
