Walkie Talkie Elbex 100

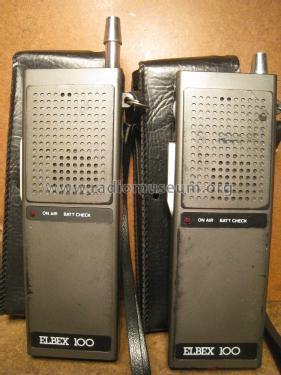

Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020157) Citizen Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020159) Citizen

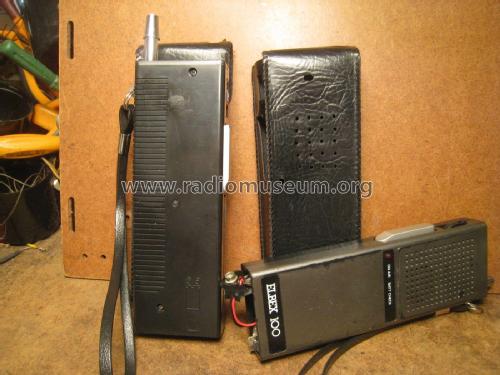

Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020161) Citizen Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020162) Citizen
Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020163) Citizen
Use red slider bar for more.
Walkie Talkie Elbex 100; Unknown - CUSTOM (ID = 2020157) Citizen
Unknown - CUSTOM: Walkie Talkie Elbex 100 [Citizen] ID = 2020157 1400x1867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Walkie Talkie Elbex 100, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1980 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Walkie Talkie Elbex 100 - Unknown - CUSTOM BUILT: Taiwan
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 52 x 155 x 23 mm / 2 x 6.1 x 0.9 inch
Notes

Ricetrasmettittore ELBEX 100 - 29,7 MHz - antenna telescopica - maniglia di trasporto - custodia in similpelle -

Made in Taiwan.

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
