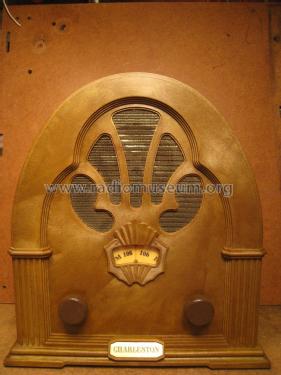

Intratex Charleston 1233 S

Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 2167275) Radio Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 2167276) Radio
Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 1950294) Radio Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 1950295) Radio
Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 1950296) Radio Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 1950297) Radio
Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 2177673) Radio
Use red slider bar for more.
Intratex Charleston 1233 S; Unknown - CUSTOM (ID = 2167275) Radio
Unknown - CUSTOM: Intratex Charleston 1233 S [Radio] ID = 2167275 1400x1629
Select picture or schematic to display from thumbnails on the right and click for download.
For model Intratex Charleston 1233 S, Unknown - CUSTOM BUILT: China

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 2000 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: S9018 S9018 TA7613
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Batteries / addl. power jack / UM2: 4 x 1,5 V / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.25 W (undistorted)
from Radiomuseum.org Model: Intratex Charleston 1233 S - Unknown - CUSTOM BUILT: China
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 170 x 200 x 70 mm / 6.7 x 7.9 x 2.8 inch
Notes

INTRATEX mod. Charleston 1233 S

FM 87,5 - 108 Mhz

Made in China.

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
