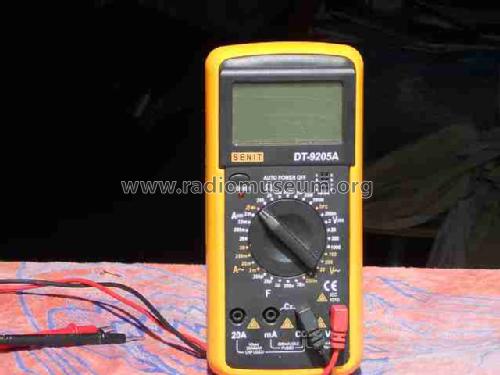

Digital Multimeter DT9205A

Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274564) Equipment Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274565) Equipment
Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274567) Equipment Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274568) Equipment
Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274569) Equipment Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274570) Equipment
Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274572) Equipment Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274574) Equipment
Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1451840) Equipment Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1451841) Equipment
Use red slider bar for more.

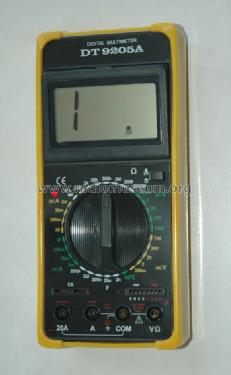

Digital Multimeter DT9205A; Unknown - CUSTOM (ID = 1274564) Equipment
Unknown - CUSTOM: Digital Multimeter DT9205A [Equipment] ID = 1274564 577x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter DT9205A, Unknown - CUSTOM BUILT: China:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 2000 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 3: 2N3904 unknown_tr unknown_tr LM324 LM324
Wave bands - without
Details
Power type and voltage Dry Batteries / 1 × 9 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Digital Multimeter DT9205A - Unknown - CUSTOM BUILT: China
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 89 x 191 x 35 mm / 3.5 x 7.5 x 1.4 inch
Notes

There are many versions of this multimeter.

Net weight (2.2 lb = 1 kg) 0.310 kg / 0 lb 10.9 oz (0.683 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
