• Country
• People's Republic of China

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: China

• Year
• 2000 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276050

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.5 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

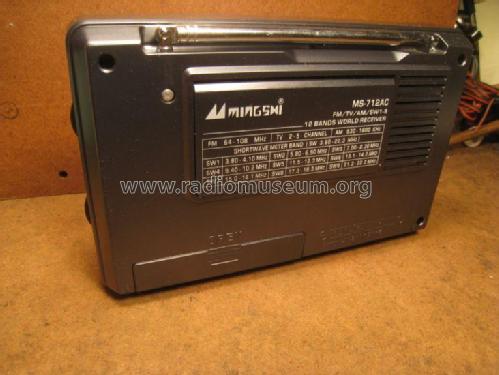

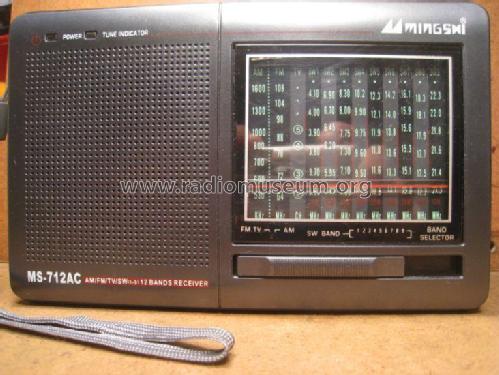

• Model: Mingshi 12 bands word receiver - Unknown - CUSTOM BUILT: China

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 180 x 115 x 30 mm / 7.1 x 4.5 x 1.2 inch

• Notes

• FM/TV/AM/SW1-9

  Made in China.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
