• Country
• People's Republic of China

• Manufacturer / Brand
• Unknown - CUSTOM BUILT: China

• Year
• 1991 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299357

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• CXA1191

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.25 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

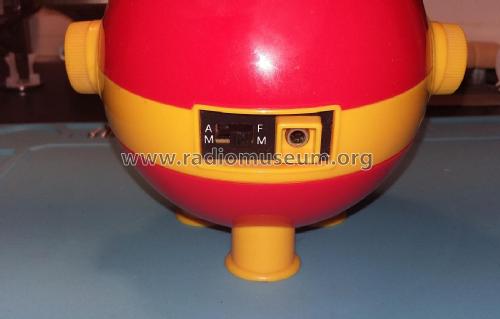

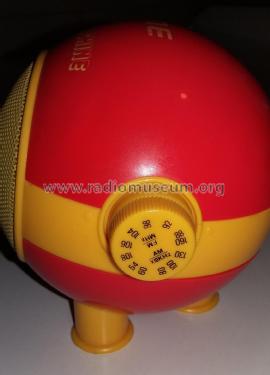

• Model: Pine Sound Machine FX-201A - Unknown - CUSTOM BUILT: China

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 118 x 105 x 110 mm / 4.6 x 4.1 x 4.3 inch

• Notes

• Bandas AM/FM
  Forma esférica
  Antena exterior enchufable de 220 mm
  Alimentación DC 4,5 V - 3 Pilas tipo AA
  Altavoz 8 Ω

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Author
• Model page created by Miguel Angel Irissarry Garcia. See "Data change" for further contributors.
