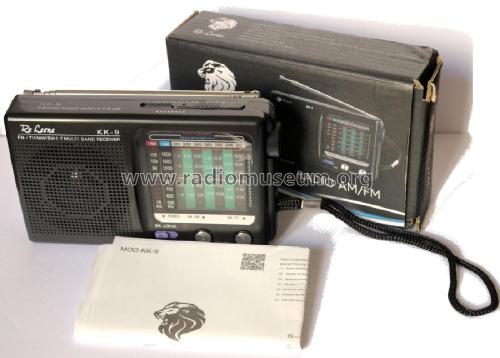

Re Leone Multiband Radio Receiver KK-9

Unknown - CUSTOM BUILT: China

  • Année
  • 2005 ??
  • Catégorie
  • Radio - ou tuner d'après la guerre 1939-45
  • Radiomuseum.org ID
  • 329223

 Spécifications techniques

  • No. de transistors
  • Semi-conducteurs présents
  • Semi-conducteurs
  • Gammes d'ondes
  • Bandes en notes
  • Tension / type courant
  • Batteries / Alim. BT séparée avec fiche / AA: 2 x 1,5 / 3 Volt
  • Haut-parleur
  • HP dynamique à aimant permanent + bobine mobile / Ø 6 cm = 2.4 inch
  • Puissance de sortie
  • 0.1 W (qualité inconnue)
  • Matière
  • Plastique moderne (pas de bakélite, ni de catalin)
  • De Radiomuseum.org
  • Modèle: Re Leone Multiband Radio Receiver KK-9 - Unknown - CUSTOM BUILT: China
  • Forme
  • Portable, appareil de poche. Taille < 20cm
  • Dimensions (LHP)
  • 130 x 78 x 29 mm / 5.1 x 3.1 x 1.1 inch
  • Remarques
  • Re Leone FM/MW/SW 9 Band Radio with TV Sound mod. KK-9

    See also: Kaide KK-9, Kaipeng KK-9, Kalade KK-9 , Durabrand KK-9 and Sonny KK-9.


    Sintonizzatore analogico

    • AM (mono)
      • Gamma di frequenze: 530 – 1.710 kHz
      • S/N: ≥ 34 dB
    • FM (mono/stereo)
      • Gamma di frequenze: 76 – 108 MHz
      • Sensitività: ≤ 30 μV
    • TV: 1 – 5 CH VHF
    • SW 1 – 7
      • Gamma di frequenza:
        • SW 1: 5.95 – 6.20 MHz
        • SW 2: 7.05 – 8.45 MHz
        • SW 3: 9.50 – 9.90 MHz
        • SW 4; 11.65 – 12.05 MHz
        • SW 5: 13.60 – 13.80 MHz
        • SW 6: 15.10 – 15.60 MHz
        • SW 7: 17.50 – 17.90 MHz
      • Sensitività: ≥ 60 μV
    • MW
      • Gamma di frequenze: 530 – 1.600 kHz
      • Sensitività: ≤ 3 mV / m

    Pulsanti e funzioni

    • Antenna telescopica
    • Led accensione (POWER)
    • Rotella accensione – controllo volume (VOL – OFF)
    • Rotella TUNING (sintonizzatore stazioni)
    • Led indicatore FM – TV
    • Pulsante commutatore FM ↔ TV
    • Selettore (switch) banda DX – LOCAL
    • Led indicatore AM – SW
    • Selettore (switch) di banda AM – SW 1 – 7
    • Pulsante commutatore AM ↔ SW
    • Pannello indicatore delle frequenze

    Connessioni

    • Uscita cuffie. Mini-presa stereo Ø 3,5 mm
    • Ingresso alimentazione (DC 3V)

    Altre caratteristiche

    • Potenza di uscita: ≥ 100 mW
    • Dimensione diffusore (mm): Ø 57, 8 Ω, 0,5 W
    • Sistema di casse: stereo
    • Alimentazione tramite batterie AA (x 2), o adattatore di corrente DC 3 V 300 mA

    Accessori in dotazione

    • Manuale cartaceo multilingua
  • Poids net
  • 0.150 kg / 0 lb 5.3 oz (0.33 lb)
  • Auteur
  • Modèle crée par Alessandro De Poi. Voir les propositions de modification pour les contributeurs supplémentaires.
