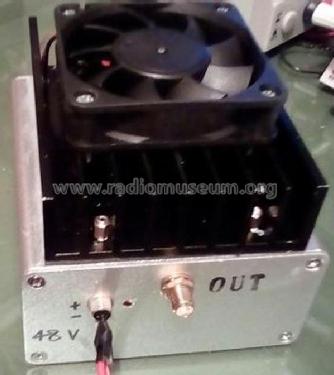

RF Wideband Power Amplifier
Unknown - CUSTOM BUILT: China
- Country
- People's Republic of China
- Manufacturer / Brand
- Unknown - CUSTOM BUILT: China
- Year
- 2000 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 325120
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 48 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: RF Wideband Power Amplifier - Unknown - CUSTOM BUILT: China
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 90 x 83 x 103 mm / 3.5 x 3.3 x 4.1 inch
- Notes
-
RF-Amplifier, Frequency 100 kHz-3 MHz; Maximum Power Input 1 milliWatt; Maximum Output Power 50 Watt (Gain 47 dB); Input and Output Impedance 50 Ω; Input and Output connector SMA.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Emilio Focosi. See "Data change" for further contributors.
