SAL Voxbox VB 2200

SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810631) Car Radio SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810632) Car Radio
SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810633) Car Radio SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810634) Car Radio
SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810635) Car Radio SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810637) Car Radio
SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810638) Car Radio
Use red slider bar for more.
SAL Voxbox VB 2200; Unknown - CUSTOM (ID = 1810631) Car Radio

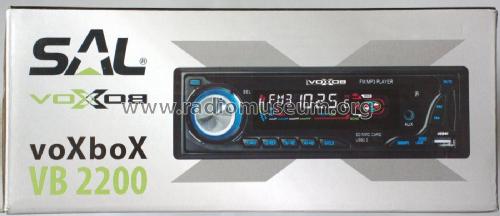

Unknown - CUSTOM: SAL Voxbox VB 2200 [Car Radio] ID = 1810631 1400x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model SAL Voxbox VB 2200, Unknown - CUSTOM BUILT: China:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 2009 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands FM Broadcast Band Only
Details HD or solid state memory; Radio Control (+Remote Wire etc)
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: SAL Voxbox VB 2200 - Unknown - CUSTOM BUILT: China
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 250 mm / 7 x 2 x 9.8 inch
Notes

MP3, USB, SD, SDHC, MMC. 20-20000 Hz, 4-8 Ohm / 4×25 W.

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)

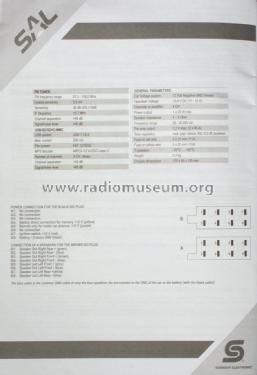

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
