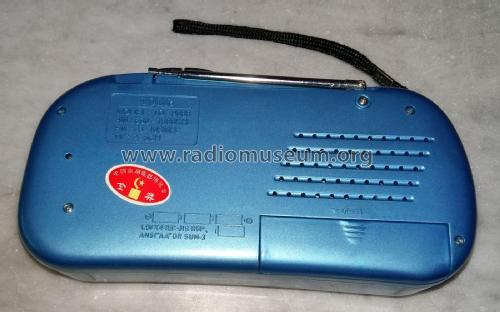

Toly Radio Cassette Player TO-9088

Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560143) Radio Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560146) Radio
Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560144) Radio Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560148) Radio
Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560145) Radio Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560147) Radio
Use red slider bar for more.
Toly Radio Cassette Player TO-9088; Unknown - CUSTOM (ID = 2560143) Radio
Unknown - CUSTOM: Toly Radio Cassette Player TO-9088 [Radio] ID = 2560143 1400x817
Select picture or schematic to display from thumbnails on the right and click for download.
For model Toly Radio Cassette Player TO-9088, Unknown - CUSTOM BUILT: China

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 1998 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3:
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out
from Radiomuseum.org Model: Toly Radio Cassette Player TO-9088 - Unknown - CUSTOM BUILT: China
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 60 x 50 mm / 7.5 x 2.4 x 2 inch
Notes

AM: 530 - 1600 kHz.
FM: 76 - 108 MHz.
TV: VHF channels 2 - 5.
Cassette player only.
2 ICs, 3 transistors.

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
