Dual Wave Superheterodyne 5A

Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776838) Radio

Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776840) Radio
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776821) Radio Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776823) Radio
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776824) Radio Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776825) Radio
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776828) Radio Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776829) Radio
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776830) Radio Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776831) Radio
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776832) Radio Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776833) Radio
Use red slider bar for more.
Dual Wave Superheterodyne 5A; Apex Electric, Pool; (ID = 776821) Radio
Apex Electric, Pool;: Dual Wave Superheterodyne 5A [Radio] ID = 776821 933x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Wave Superheterodyne 5A, Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)

Country:  United States of America (USA)
Manufacturer / Brand:  Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
alternative name

Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 57 58 57 247 280
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.5 cm = 4.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Dual Wave Superheterodyne 5A - Apex Electric, Pool; Chicago;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 250 x 200 mm / 17.7 x 9.8 x 7.9 inch
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data - - Data from my own collection

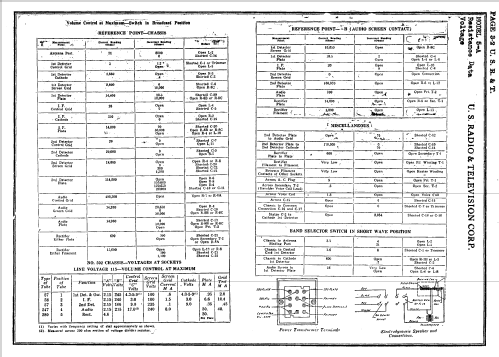

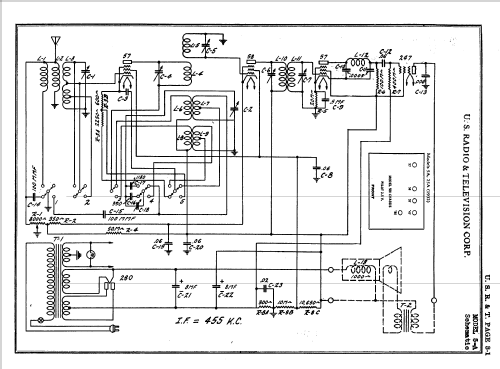

Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before

Model page created by Jose Casas-Avalos. See "Data change" for further contributors.



All listed radios etc. from Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
Here you find 219 models, 80 with images and 123 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
