• Country
• United States of America (USA)

• Manufacturer / Brand
• Utah Radio Products Co.; Salt Lake City + Chicago

• Year
• 1956

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 123399

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• from Radiomuseum.org

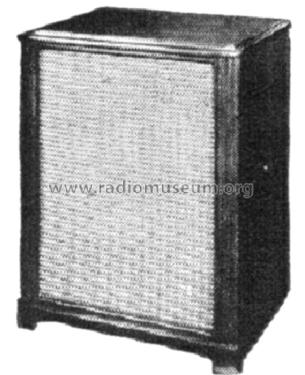

• Model: HF-800 Esquire - Utah Radio Products Co.; Salt

• Dimensions (WHD)
• 24 x 30.5 x 18 inch / 610 x 775 x 457 mm

• Notes
• Bass reflex enclosure with one 12" woofer and three 3,5" tweeters. 40 to 15000Hz, 16W.
  M, K or C suffix, depending on the finish.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 100.00 $

• Literature/Schematics (1)
• The Radio-Electronic Master Buying Guide, 1956

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
