Szimfonia R946FA

Szimfonia R946FA; Videoton; (ID = 1718947) Radio
Szimfonia R946FA; Videoton; (ID = 1181874) Radio Szimfonia R946FA; Videoton; (ID = 1657663) Radio
Szimfonia R946FA; Videoton; (ID = 1657664) Radio Szimfonia R946FA; Videoton; (ID = 1657666) Radio

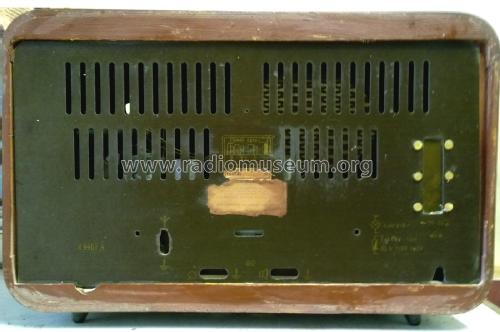

Szimfonia R946FA; Videoton; (ID = 1657667) Radio Szimfonia R946FA; Videoton; (ID = 1988302) Radio
Use red slider bar for more.
Szimfonia R946FA; Videoton; (ID = 1181874) Radio
Videoton;: Szimfonia R946FA [Radio] ID = 1181874 620x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model Szimfonia R946FA, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1960–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 ECH81 EBL21 EZ80 EM80
Main principle Superheterodyne (common); ZF/IF 473,6 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Szimfonia R946FA - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 320 x 190 mm / 20.1 x 12.6 x 7.5 inch
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Literature/Schematics (1) -- Schematic

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
