• Country
• Spain

• Manufacturer / Brand
• Valls Costa, Andrés; Barbi (marca); Barcelona

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62559

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

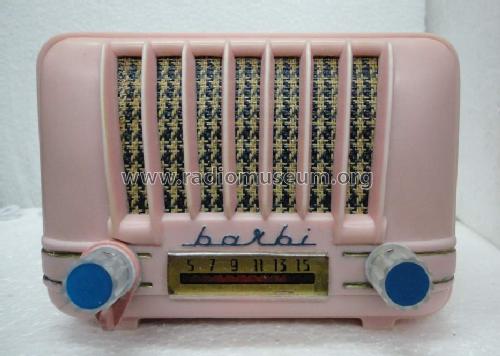

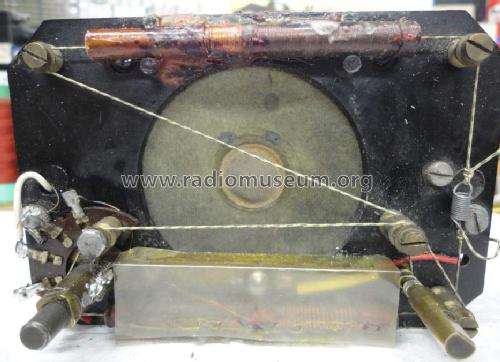

• Model: Barbi 41 [UL41 tube] - Valls Costa, Andrés; Barbi

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 130 x 90 x 90 mm / 5.1 x 3.5 x 3.5 inch

• Net weight (2.2 lb = 1 kg)
• 0.878 kg / 1 lb 14.9 oz (1.934 lb)

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Other Models

• Here you find 6 models, 6 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
