• Country
• Spain

• Manufacturer / Brand
• Vanguard; Hospitalet de Llobregat

• Year
• 1973 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 326006

• • alternative name: Cahué Industrial

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• PCF801 PC900 EF183 EF183 PCF200 PCF802 PFL200 PCL85 PL504 PY88 PCL86 A61-120W

• Number of Transistors
• 2

• Semiconductors
• TBA120 AF139 AF139 TBA120 BA100 BA148 BZX46 F16 M80C4 OA90 OA91 TV18

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2024 - Vanguard; Hospitalet de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 690 x 512 x 352 mm / 27.2 x 20.2 x 13.9 inch

• Notes

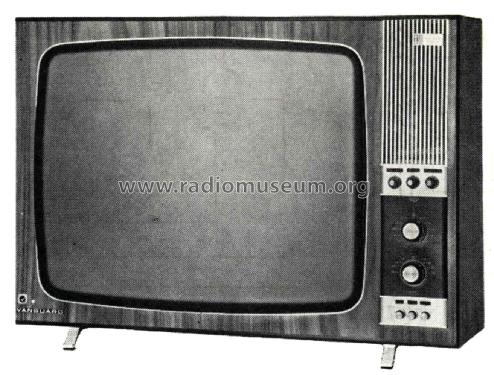

• Vanguard (Cahué Industrial, S.A.), televisor con chasis híbrido 2024

  TV B/N 24" con selector rotativo de VHF Copresa AT7650/90 y sintonizador transistorizado de UHF tipo RH26.

  Altavoz lateral elíptico de 5" x 7" y altavoz frontal de 3"
  Salida para altavoz supletorio y magnetófono.

  Véase también mismo modelo en 20" tipo 2020



• Net weight (2.2 lb = 1 kg)
• 27.5 kg / 60 lb 9.2 oz (60.573 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
