- Country
- Spain
- Manufacturer / Brand
- Vanguard; Hospitalet de Llobregat
- Year
- 1977 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 326072
-
- alternative name: Cahué Industrial

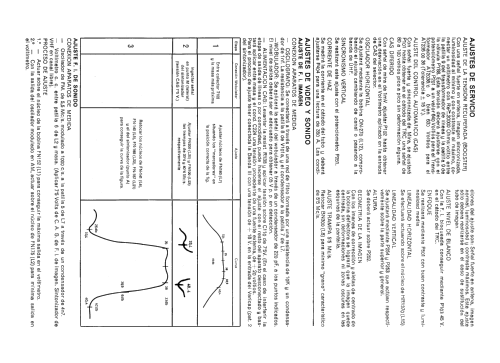

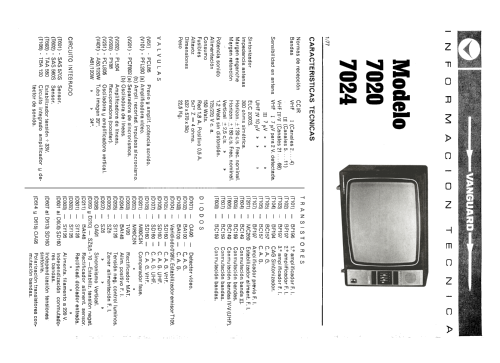

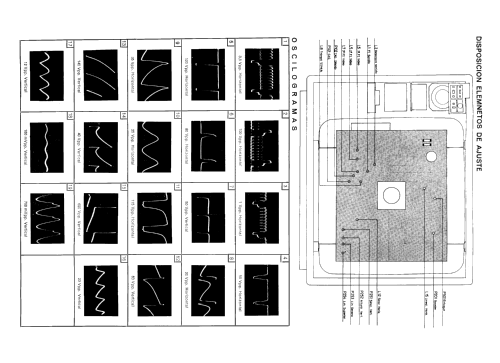

Imagen del manual

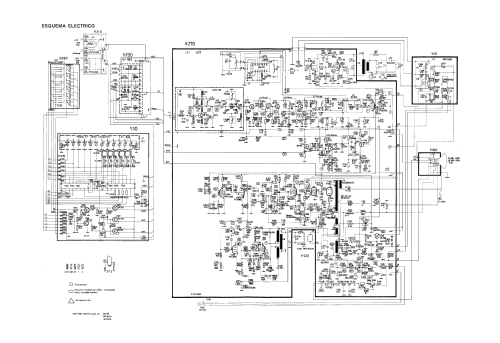

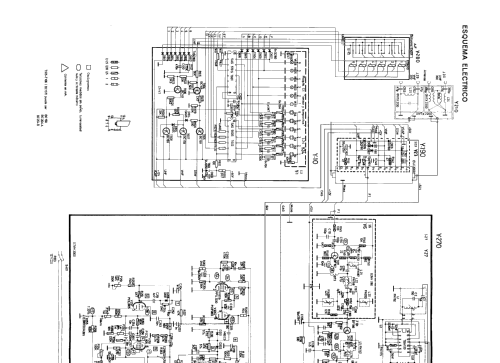

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 13
- Semiconductors
- BF196 BF197 BF197 BF194 BC157 BC157 BF197 MC260 BC149 BC159 BC149 BC159 BC159 SAS570 SAS560 TAA550 TBA120 BA100 BA148 M80C5 OA90 OA91 OA95 SD160 SY126 or. F16 SZ6 TV20
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 1.2 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 7020 - Vanguard; Hospitalet de
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 532 x 390 mm / 22.4 x 20.9 x 15.4 inch
- Notes
-

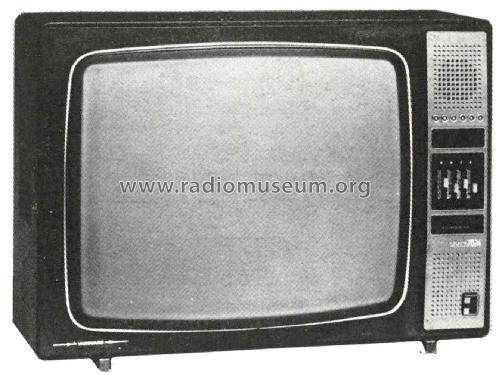

Vanguard (Cahué Industrial, S.A.), televisor con chasis híbrido 7020
TV B/N 20" con sintonizador de VHF/UHF Copresa ELC2000-S
- Seis presintonías por sensores
- Altavoz lateral elíptico de 5" x 7" y altavoz frontal de 3"
- Salida para altavoz supletorio y magnetófono.
Véase también mismo modelo en 24" tipo 7024
- Net weight (2.2 lb = 1 kg)
- 22.5 kg / 49 lb 9 oz (49.559 lb)
