Jet FM 36PT-S3

Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 284254) Radio
Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1414530) Radio Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1414531) Radio
Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1414532) Radio Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1414533) Radio
Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1534527) Radio Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1627485) Radio
Use red slider bar for more.
Jet FM 36PT-S3; Vanguard; Hospitalet (ID = 1414530) Radio
Vanguard; Hospitalet: Jet FM 36PT-S3 [Radio] ID = 1414530 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jet FM 36PT-S3, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1967 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 AC126 AC126 AC128 AC128 SFD112 SFD107 1N542 1N542
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: Jet FM 36PT-S3 - Vanguard; Hospitalet de
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

Vanguard (Cahué Industrial, S.A.), Jet 36PT-S3

Véase también

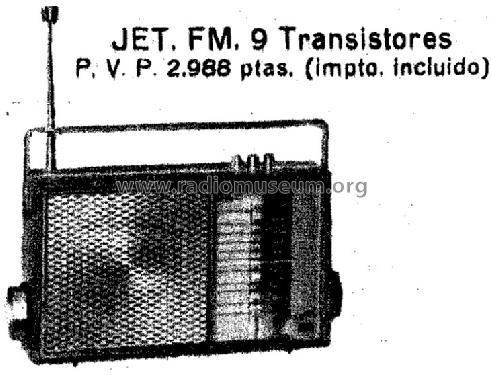

Price in first year of sale 2'988.00 ESP
Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
