Supernova 9AE-S2

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729065) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729066) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729067) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729068) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729070) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729071) Radio

Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1729072) Radio
Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1739784) Radio
Use red slider bar for more.
Supernova 9AE-S2; Vanguard; Hospitalet (ID = 1739784) Radio
Vanguard; Hospitalet: Supernova 9AE-S2 [Radio] ID = 1739784 933x685
Select picture or schematic to display from thumbnails on the right and click for download.
For model Supernova 9AE-S2, Vanguard; Hospitalet de Llobregat:
Foto por cortesía del propietario

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21: BF195 BF194 BF194 BF195 BF194 BF194 ULN2111A BC148 BC149 BC149 BC148 BC148 BC148 BC149 BC147 MC250 BD131 BD132 BD131 AC188 MC140 AC188 BB100 SFD112 SFD107 SD560 SZ6 SD530 SD510
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz; 4 AF stage(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Changer + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Supernova 9AE-S2 - Vanguard; Hospitalet de
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 804 x 337 x 188 mm / 31.7 x 13.3 x 7.4 inch
Notes

This model contains a cassette recorder and one of the following record changers:

Dual 1010S or Dual 1211 or Garrard SL65 or Cosmo CT0511.

Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)

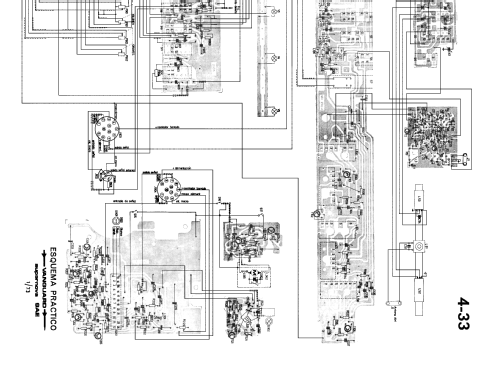

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
