Laetitia 510

Laetitia 510; Vara; Torino (ID = 213526) Radio

Laetitia 510; Vara; Torino (ID = 261390) Radio
Laetitia 510; Vara; Torino (ID = 1575356) Radio Laetitia 510; Vara; Torino (ID = 338211) Radio
Laetitia 510; Vara; Torino (ID = 338213) Radio Laetitia 510; Vara; Torino (ID = 338212) Radio
Laetitia 510; Vara; Torino (ID = 338209) Radio Laetitia 510; Vara; Torino (ID = 338210) Radio
Laetitia 510; Vara; Torino (ID = 1246178) Radio Laetitia 510; Vara; Torino (ID = 1246179) Radio
Laetitia 510; Vara; Torino (ID = 1246180) Radio Laetitia 510; Vara; Torino (ID = 1246181) Radio
Use red slider bar for more.

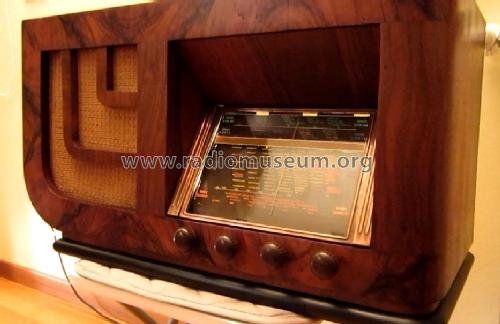

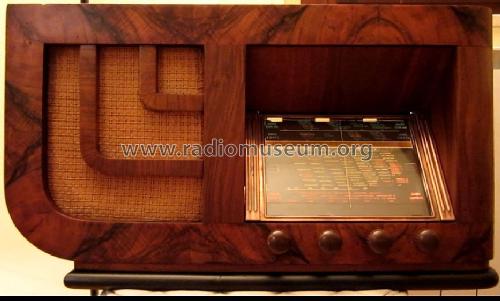

Laetitia 510; Vara; Torino (ID = 1575356) Radio
Vara; Torino: Laetitia 510 [Radio] ID = 1575356 933x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model Laetitia 510, Vara; Torino

Country:  Italy
Manufacturer / Brand:  Vara; Torino
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6K7G 6Q7G 6V6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Laetitia 510 - Vara; Torino
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 340 x 300 mm / 24 x 13.4 x 11.8 inch
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 364)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. V1)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Vara; Torino
Here you find 20 models, 14 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Vara; Torino: Laetitia 510
Threads: 1 | Posts: 1
Hits: 1297     Replies: 0
vara: 510; Laetitia
Pierantonio Ganazzin
10.Jul.07
  1 Questo ricevitore d'epoca a valvole fu prodotto verso la fine degli anni '30 dalla Radio Laetitia, (Soc. Vara di Torino) con la collaborazione della Magnadyne Radio sempre di Torino, il progetto prevedeva la costruzione di una piccola serie di ricevitori di pregio prevalentemente destinati ad istituti religiosi ed opere di culto

Vara; Torino: Laetitia 510
