• Country
• Italy

• Manufacturer / Brand
• Vara; Torino

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101343

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

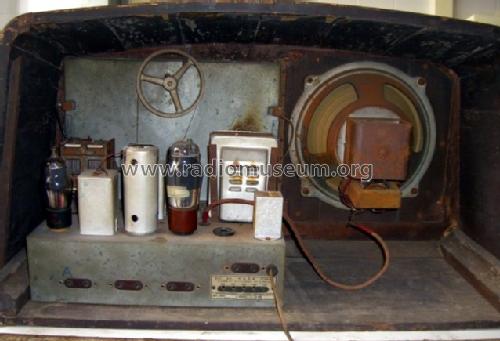

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 5Y3

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage

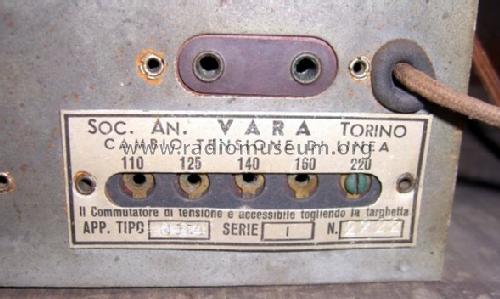

• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Laetitia 604 - Vara; Torino

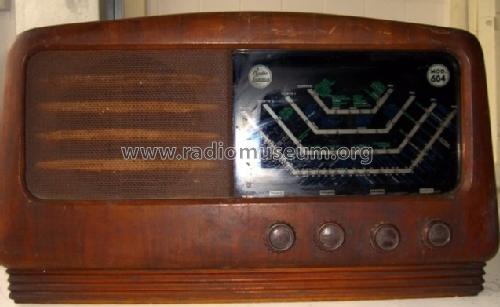

• Shape
• Tablemodel, low profile (big size).

• Notes

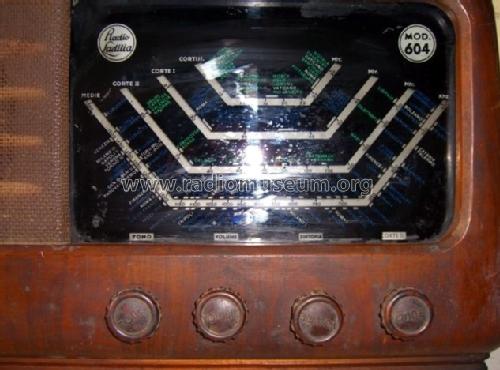

• Gamme d'onda: medie, corte 1 e 2, cortissime.

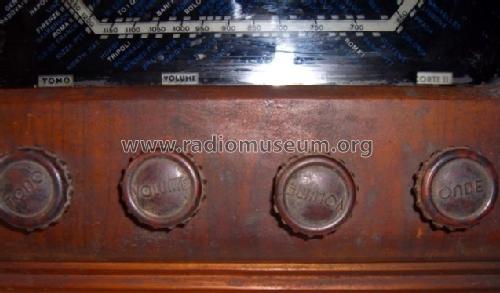

  Controllo di tono. Ingresso per giradischi.

  Wave bands: broadcast, 3x short waves.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• -- Original prospect or advert (Radioschemi, n.1-2, gennaio 1947 e n.3-4, marzo 1947)

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 365)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
