Anoden-Akkumulator-Batterie 20W

Anoden-Akkumulator-Batterie 20W; Varta Accumulatoren- (ID = 944109) Power-S
Use red slider bar for more.
Anoden-Akkumulator-Batterie 20W; Varta Accumulatoren- (ID = 944109) Power-S
Select picture or schematic to display from thumbnails on the right and click for download.
Country:  Germany
Manufacturer / Brand:  Varta Accumulatoren-Gesellschaft m.b.H.; Berlin,
Year: 1926 Category: Power supply/conditioner or battery or charger
Wave bands - without
Power type and voltage Is a battery or storage battery / 40 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Model: Anoden-Akkumulator-Batterie 20W - Varta Accumulatoren-
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 140 x 118 x 230 mm / 5.5 x 4.6 x 9.1 inch
Notes Anoden-Batterie aus 4 Stück fünfzelligen Elementgruppen, Type 5W.
Glasgefässe im Holzkasten mit Tragbügel. Die einzelnen Elemente besitzen Polableitungen, um Spannungen von 2 zu 2 Volt abnehmen zu können.
Max. 1200 mAh bei unterbrochener Entladung mit 10 mA.
Max. Ladestrom: 70 mA.
Net weight (2.2 lb = 1 kg) 3.560 kg / 7 lb 13.5 oz (7.841 lb)
Price in first year of sale 31.00 RM

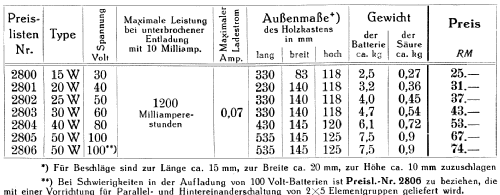

Literature/Schematics (1) Varta Preisliste 1926
