Heiz-Akkumulator 1L3

Heiz-Akkumulator 1L3; Varta Accumulatoren- (ID = 943602) Power-S
Use red slider bar for more.
Heiz-Akkumulator 1L3; Varta Accumulatoren- (ID = 943602) Power-S
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Varta Accumulatoren-Gesellschaft m.b.H.; Berlin,
Brand

Pertrix
Year: 1926 Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 2 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Heiz-Akkumulator 1L3 - Varta Accumulatoren-
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 147 x 222 x 139 mm / 5.8 x 8.7 x 5.5 inch
Notes

Heiz-Akkumulator 2 Volt, im Rippenglasgefäß.
Holzkasten schwarz lackiert, mit Isolierfüßchen.
Anschlussklemmen geeignet für Bananenstecker, Kabelschuhe oder Draht.

Net weight (2.2 lb = 1 kg) 7.140 kg / 15 lb 11.6 oz (15.727 lb)
Price in first year of sale 26.00 RM

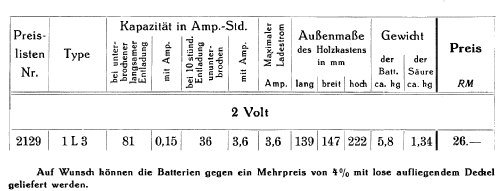

Literature/Schematics (1) Varta Preisliste 1926

Model page created by a member from D. See "Data change" for further contributors.
