M1

M1; Veall, Arthur J. Pty (ID = 2005002) Radio
Use red slider bar for more.
M1; Veall, Arthur J. Pty (ID = 2005002) Radio

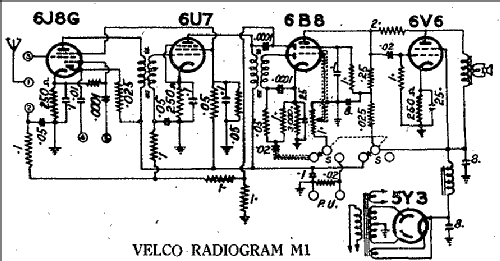

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Veall, Arthur J. Pty Ltd. - Velco Sound Systems; Melbourne
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6J8G 6U7G 6B8G 6V6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: M1 - Veall, Arthur J. Pty Ltd. -
Material Wooden case
Shape Tablemodel, with any shape - general.
Mentioned in Mingay's "Radio Diagram & I.F. Index
Literature/Schematics (1) Australian Official Radio Service Manual Vol. 6 P474.

Model page created by Stuart Irwin. See "Data change" for further contributors.
