Baltika - Балтика

Baltika - Балтика ; VEF Radio Works (ID = 104007) Radio
Baltika - Балтика ; VEF Radio Works (ID = 109014) Radio Baltika - Балтика ; VEF Radio Works (ID = 109015) Radio
Baltika - Балтика ; VEF Radio Works (ID = 258157) Radio Baltika - Балтика ; VEF Radio Works (ID = 258156) Radio
Baltika - Балтика ; VEF Radio Works (ID = 258158) Radio Baltika - Балтика ; VEF Radio Works (ID = 813570) Radio

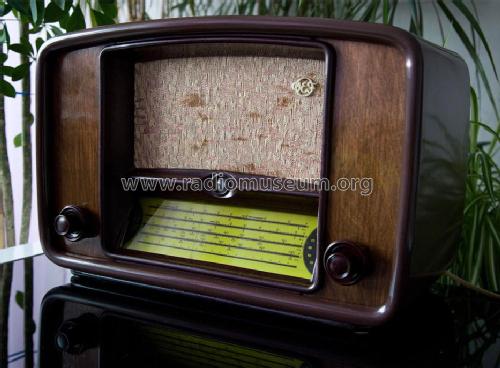

Baltika - Балтика ; VEF Radio Works (ID = 981764) Radio Baltika - Балтика ; VEF Radio Works (ID = 1104217) Radio
Use red slider bar for more.
Baltika - Балтика ; VEF Radio Works (ID = 109014) Radio
VEF Radio Works: Baltika - Балтика [Radio] ID = 109014 674x444
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baltika - Балтика, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Kaunas, Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6А7 6К3 6Г2 6П6С 6Е5С 5Ц4С
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110/127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Baltika - Балтика - VEF Radio Works Valst
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 560 x 360 x 280 mm / 22 x 14.2 x 11 inch
Notes Later on, about 1952, radio "Baltika" producible in Gorky ZIL Works (SU) too. Was used 7 tubes schematic (see Baltika 52).
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Mentioned in Past Soviet Union magazine RADIO Nr.01 - 1953

Model page created by Nikolaj Baranov. See "Data change" for further contributors.
