• Year
  • 1952–1954 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 68756

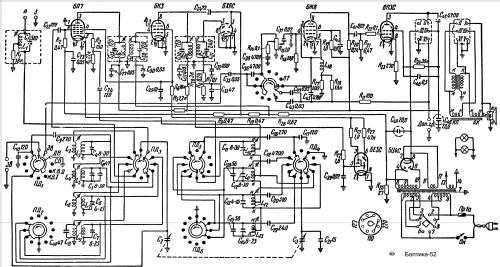

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Baltika - Балтика 52 - VEF Radio Works Valst
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 500 x 360 x 280 mm / 19.7 x 14.2 x 11 inch
  • Net weight (2.2 lb = 1 kg)
  • 15.5 kg / 34 lb 2.3 oz (34.141 lb)
  • External source of data
  • Eilert Menke
  • Mentioned in
  • Past Soviet Union magazine RADIO Nr.01 - 1953
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
