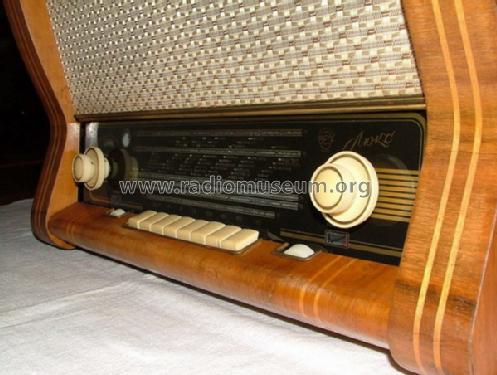

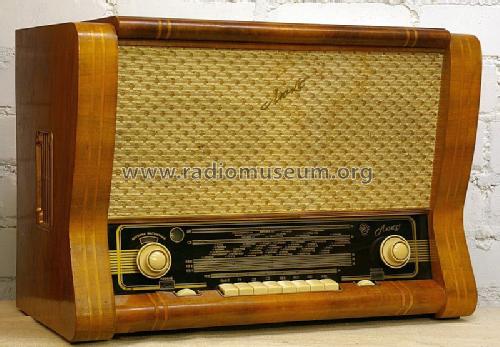

Liuks RK-156 ("PK-156")

Liuks RK-156 ; VEF Radio Works (ID = 110196) Radio
Liuks RK-156 ; VEF Radio Works (ID = 110169) Radio Liuks RK-156 ; VEF Radio Works (ID = 110170) Radio
Liuks RK-156 ; VEF Radio Works (ID = 110171) Radio Liuks RK-156 ; VEF Radio Works (ID = 110172) Radio
Liuks RK-156 ; VEF Radio Works (ID = 110173) Radio Liuks RK-156 ; VEF Radio Works (ID = 1207085) Radio
Liuks RK-156 ; VEF Radio Works (ID = 1889099) Radio Liuks RK-156 ; VEF Radio Works (ID = 2421917) Radio
Liuks RK-156 ; VEF Radio Works (ID = 2421918) Radio Liuks RK-156 ; VEF Radio Works (ID = 2421919) Radio
Use red slider bar for more.
Liuks RK-156 ; VEF Radio Works (ID = 110169) Radio
VEF Radio Works: Liuks RK-156 [Radio] ID = 110169 611x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model Liuks RK-156 ('PK-156'), VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Kaunas Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6Н3П 6К4П 6И1П 6К4П 6Е5С 6К4П 6Х2П 6Н2П 6Н2П 6П14П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 8 AM circuit(s)     6 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker 4 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Liuks RK-156 - VEF Radio Works Valst
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 625 x 450 x 365 mm / 24.6 x 17.7 x 14.4 inch
Notes

Coverage LW,MW,three SW bands and FM 64,5-73 MHz(4,65-4,11m).
Record player for 33 and 78 rpm.
4 loudspeakers- 2x5W in front and 1W in both sides.

The record player has a spring mounted 10" turntable. It has two speeds only, 33RPM & 78RPM.

Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
External source of data E.A.Levitin, "Radio sets", Moscow 1960
Mentioned in Electronics Australia, December 1993 Page 94

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
