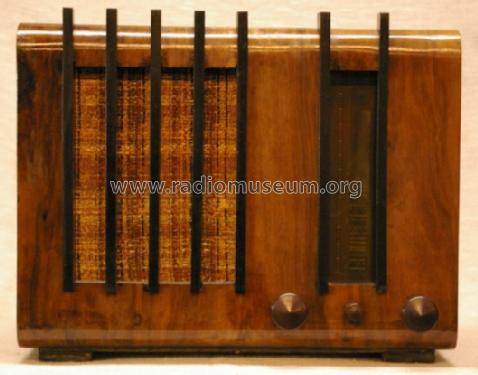

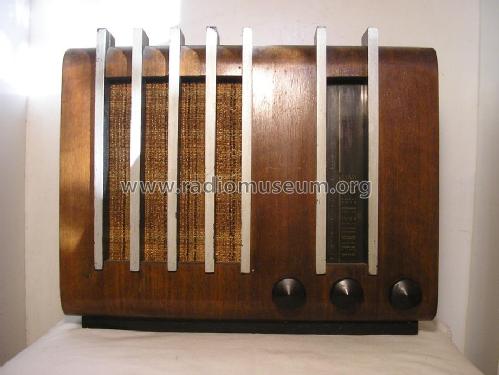

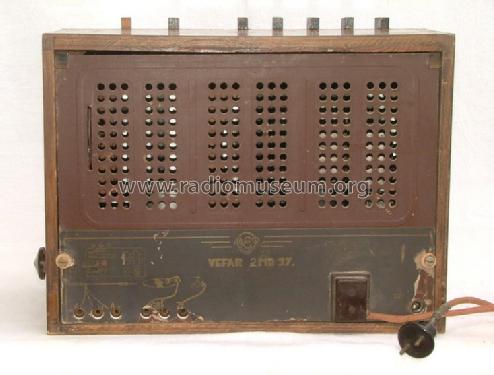

VEF Radio Works: Vefar 2MD37 MD/37 [Radio] ID = 33852 713x523

Select picture or schematic to display from thumbnails on the right and click for download.

For model Vefar 2MD37 MD/37, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Country:

Latvia (Latvia, Riga)

Manufacturer / Brand:

VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Year: 1936/1937

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

3: AF7 AL1 AZ1

Main principle	to an article TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands	Broadcast, Long Wave and Short Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 120-220 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out	2 W (unknown quality)
from Radiomuseum.org	Model: Vefar 2MD37 MD/37 - VEF Radio Works Valst
Material	Wooden case
Price in first year of sale	125.00 LVL

Model page created by Atis Brikmanis. See "Data change" for further contributors.

All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 136 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Timo Rantasaari (FIN)

Collection of Friedrich Kutnik (D)

Collection of Urmas Tingas (EST)

Collection of Atis Brikmanis (LV)

Collection of Zenonas Langaitis (LT)

Forum contributions about this model

VEF Radio Works: Vefar 2MD37 MD/37

Threads: 1 | Posts: 1

Hits: 1836 Replies: 0

vef: 2MD/37; Vefar 2MD37

Friedrich Kutnik
03.Apr.11

vef: 2MD/37; Vefar 2MD37

VEFAR-2MD37

Hallo zusammen,

gestern war ich fertig mit meinem VEFAR-2MD37.
Das Gehäuse und Lautsprecher war neue lackiert . Rest war nur gereinigt.
Kondensatoren musste ich teilweise erneuen.

Attachments

VEFAR-2MD37 (117 KB)
VEFAR-2MD37 (116 KB)
sch-2 (112 KB)

VEF Radio Works: Vefar 2MD37 MD/37
