Veflux (Geographic 38) MD/38 Tischgerät

Veflux MD/38; VEF Radio Works (ID = 308640) Radio Veflux MD/38; VEF Radio Works (ID = 308641) Radio
Veflux MD/38; VEF Radio Works (ID = 35521) Radio
Use red slider bar for more.
Veflux MD/38; VEF Radio Works (ID = 308640) Radio
VEF Radio Works: Veflux MD/38 [Radio] ID = 308640 744x520
Select picture or schematic to display from thumbnails on the right and click for download.

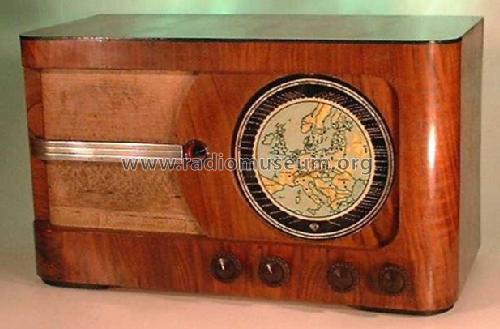

For model Veflux (Geographic 38) MD/38 Tischgerät, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Decorative metal overlay and the two first handles - not original.

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EK2 EF5 EB4 EF6 EM1 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Veflux MD/38 [Tischgerät] - VEF Radio Works Valst
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Geographic 38 Lux
Price in first year of sale 335.00 LVL

Model page created by Atis Brikmanis. See "Data change" for further contributors.
