Vefon MD38 MD/38

Vefon MD38 MD/38; VEF Radio Works (ID = 213252) Radio Vefon MD38 MD/38; VEF Radio Works (ID = 213254) Radio
Vefon MD38 MD/38; VEF Radio Works (ID = 38419) Radio Vefon MD38 MD/38; VEF Radio Works (ID = 34940) Radio
Vefon MD38 MD/38; VEF Radio Works (ID = 38417) Radio Vefon MD38 MD/38; VEF Radio Works (ID = 38418) Radio
Vefon MD38 MD/38; VEF Radio Works (ID = 120449) Radio Vefon MD38 MD/38; VEF Radio Works (ID = 213251) Radio
Vefon MD38 MD/38; VEF Radio Works (ID = 213253) Radio Vefon MD38 MD/38; VEF Radio Works (ID = 213255) Radio
Use red slider bar for more.
Vefon MD38 MD/38; VEF Radio Works (ID = 213252) Radio
VEF Radio Works: Vefon MD38 MD/38 [Radio] ID = 213252 730x552
Select picture or schematic to display from thumbnails on the right and click for download.

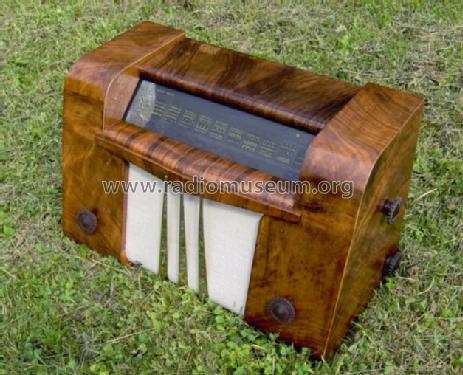

For model Vefon MD38 MD/38, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Kaunas Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 469 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Vefon MD38 MD/38 - VEF Radio Works Valst
Material Wooden case
Price in first year of sale 290.00 LVL

Model page created by Atis Brikmanis. See "Data change" for further contributors.



All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 135 with images and 77 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
