Vefsuper MD39 MD/39

VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Data

Forum

Pictures

Collections

Country
Latvia (Latvia, Riga)

Manufacturer / Brand
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Year
1938/1939

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
30357

Schematics

Vefsuper MD39 MD/39; VEF Radio Works (ID = 2835550) Radio — VEF Radio Works Vefsuper MD39 MD/39 (3)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 35327) Radio — VEF Radio Works Vefsuper MD39 MD/39 (2)
VEF Katalog 1939

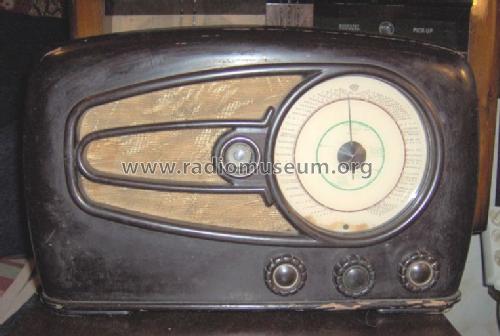

Vefsuper MD39 MD/39; VEF Radio Works (ID = 121083) Radio — VEF Radio Works Vefsuper MD39 MD/39 (2)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 184141) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 187337) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 285677) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 849425) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)
Lettland, VEF Riga, Bj.1938

Vefsuper MD39 MD/39; VEF Radio Works (ID = 971545) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)
VEF,Riga, Latvia: Vefsuper M517

Vefsuper MD39 MD/39; VEF Radio Works (ID = 971546) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)
VEF, Riga, Latvia: Vefsuper M517

Vefsuper MD39 MD/39; VEF Radio Works (ID = 971547) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)
VEF, Riga, Latvia: Vefsuper M517

Vefsuper MD39 MD/39; VEF Radio Works (ID = 971548) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 971549) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)
VEF, Riga, Latvia: Vefsuper M517

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1263333) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361618) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361619) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361620) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361621) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

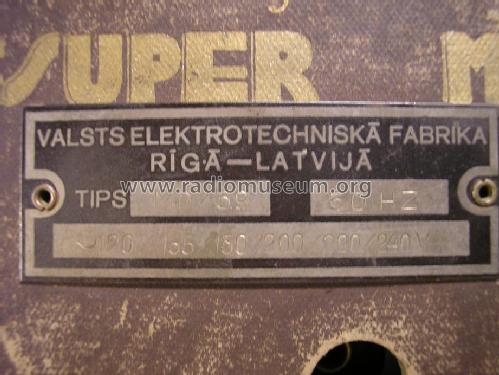

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361622) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

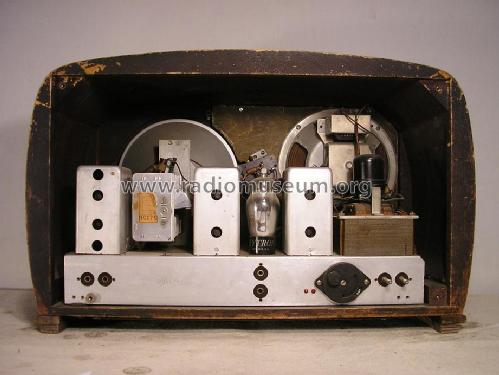

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361623) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

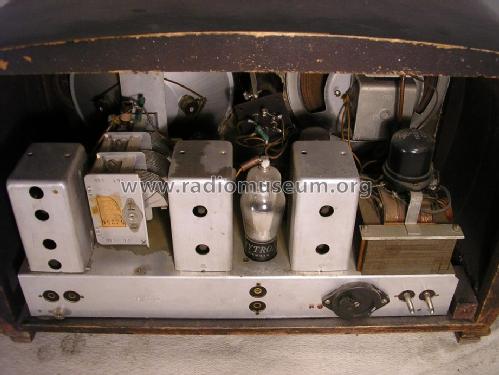

Vefsuper MD39 MD/39; VEF Radio Works (ID = 1361624) Radio — VEF Radio Works Vefsuper MD39 MD/39 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
6A8G 6B8G 6K6G 6E5 1-V

Main principle
Superheterodyne (common); ZF/IF 128 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 120-220 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Power out
2 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Vefsuper MD39 MD/39 - VEF Radio Works Valst

Dimensions (WHD)
480 x 304 x 222 mm / 18.9 x 12 x 8.7 inch

Price in first year of sale
180.00 LVL

Author
Model page created by Atis Brikmanis. See "Data change" for further contributors.
