Vefsuper MD/40 M507 6A8G

Vefsuper MD/40 M507; VEF Radio Works (ID = 97779) Radio Vefsuper MD/40 M507; VEF Radio Works (ID = 97780) Radio

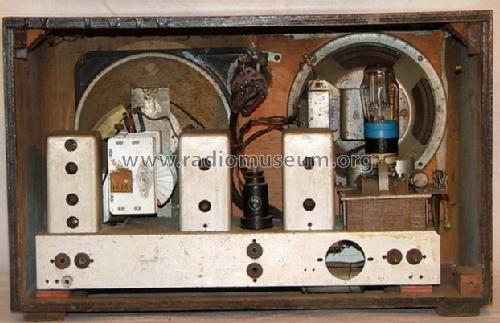

Vefsuper MD/40 M507; VEF Radio Works (ID = 97783) Radio Vefsuper MD/40 M507; VEF Radio Works (ID = 184151) Radio

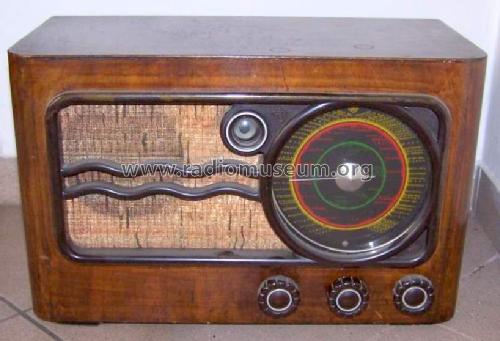

Vefsuper MD/40 M507; VEF Radio Works (ID = 730772) Radio Vefsuper MD/40 M507; VEF Radio Works (ID = 942618) Radio
Vefsuper MD/40 M507; VEF Radio Works (ID = 942619) Radio Vefsuper MD/40 M507; VEF Radio Works (ID = 942620) Radio
Use red slider bar for more.
Vefsuper MD/40 M507; VEF Radio Works (ID = 97779) Radio
VEF Radio Works: Vefsuper MD/40 M507 [Radio] ID = 97779 653x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vefsuper MD/40 M507 6A8G, VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga:
Kaunas, Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6B8G 6E5 6K6G AZ1
Main principle Superheterodyne (common); ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Vefsuper MD/40 M507 [6A8G] - VEF Radio Works Valst
Material Wooden case
Dimensions (WHD) 480 x 310 x 215 mm / 18.9 x 12.2 x 8.5 inch
Notes Siehe auch Röhrenvariante: EK2 etc.
Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)
Price in first year of sale 215.00 LVL

Model page created by Atis Brikmanis. See "Data change" for further contributors.



All listed radios etc. from VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
Here you find 139 models, 135 with images and 77 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
