• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118639

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK91 or 1R5 DF91 or 1U4 DAF91 or 1S5 DL92 or 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 6 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

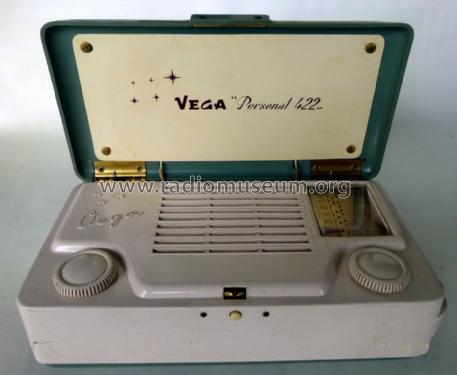

• Model: Personal 422 - Vega, BP Radio, Brionvega,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 115 x 62 mm / 8.3 x 4.5 x 2.4 inch

• Notes

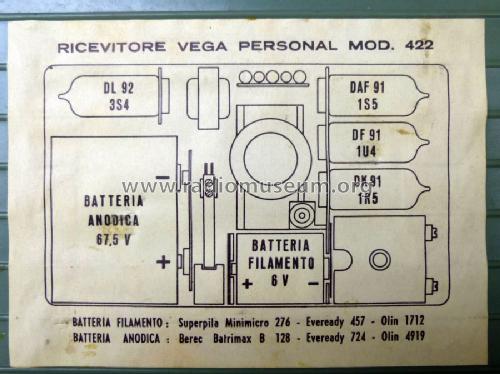

• Batterie interne 67,5 V per la tensione anodica e 6 V per i filamenti. Internal batteries 67.5 V for the anode voltage and 6 V for the filaments.

  Alimentatore AC esterno. Power supply for mains operation.

  3 varianti di colore. 3 color variants.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
