• Year
  • 1945/1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 232156

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands

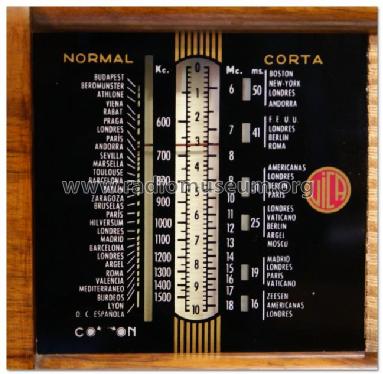

  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

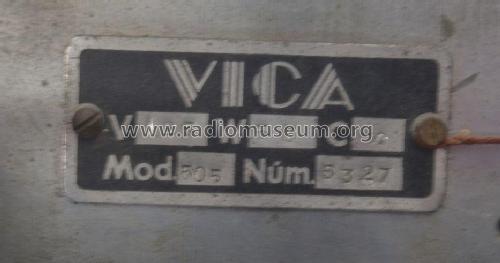

  • Model: 505 - Vica Talleres, Capdevila;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 380 x 250 x 210 mm / 15 x 9.8 x 8.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 6.3 kg / 13 lb 14 oz (13.877 lb)
  • Author
  • Model page created by Matteo Agustoni. See "Data change" for further contributors.
