Athene de Luxe TA 5204

Athene de Luxe TA 5204; Videoton; (ID = 1456504) Television

Athene de Luxe TA 5204; Videoton; (ID = 1456505) Television

Athene de Luxe TA 5204; Videoton; (ID = 1456506) Television

Athene de Luxe TA 5204; Videoton; (ID = 1456507) Television

Athene de Luxe TA 5204; Videoton; (ID = 1456508) Television
Athene de Luxe TA 5204; Videoton; (ID = 713219) Television Athene de Luxe TA 5204; Videoton; (ID = 713220) Television
Athene de Luxe TA 5204; Videoton; (ID = 705157) Television
Use red slider bar for more.
Athene de Luxe TA 5204; Videoton; (ID = 713219) Television
Videoton;: Athene de Luxe TA 5204 [Television] ID = 713219 669x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Athene de Luxe TA 5204, Videoton; Székesfehérvár:

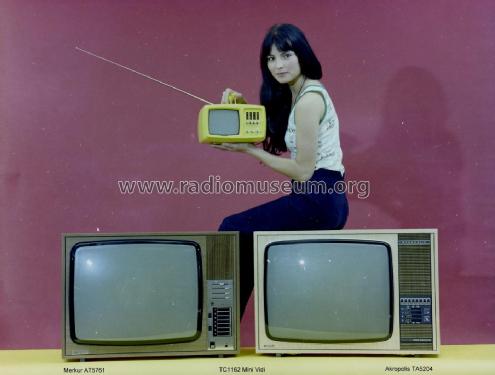

Original prospekt

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1975–1977 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: ECC82 PCL84 PCL85 PCL86 PY88 PL504 61ЛК1Б
Semiconductors (the count is only for transistors) 10: AF139 AF139 AF139 AF239 AF239 BF198 BF199 BF199 BC107 BC108 TBA120 SAS660 SAS670
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 17 cm = 6.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Athene de Luxe TA 5204 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 720 x 525 x 348 mm / 28.3 x 20.7 x 13.7 inch
Notes

VHF I, III, and UHF. Screen 61 cm, 8 sensor preselection knob.

Net weight (2.2 lb = 1 kg) 33 kg / 72 lb 11 oz (72.687 lb)
Price in first year of sale 7'800.00 HUF
Source of data Radio- es TV- kapcsolások, 1975-77

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
