Athene TA-5204

Athene TA-5204; Videoton; (ID = 1456238) Television

Athene TA-5204; Videoton; (ID = 1456239) Television

Athene TA-5204; Videoton; (ID = 1456241) Television

Athene TA-5204; Videoton; (ID = 1456242) Television

Athene TA-5204; Videoton; (ID = 1456244) Television
Athene TA-5204; Videoton; (ID = 713781) Television Athene TA-5204; Videoton; (ID = 713782) Television
Athene TA-5204; Videoton; (ID = 713783) Television
Use red slider bar for more.

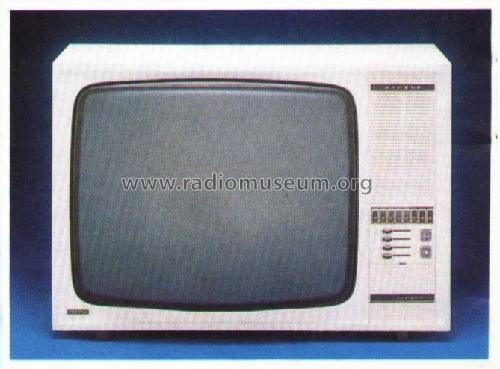

Athene TA-5204; Videoton; (ID = 713781) Television
Videoton;: Athene TA-5204 [Television] ID = 713781 669x495

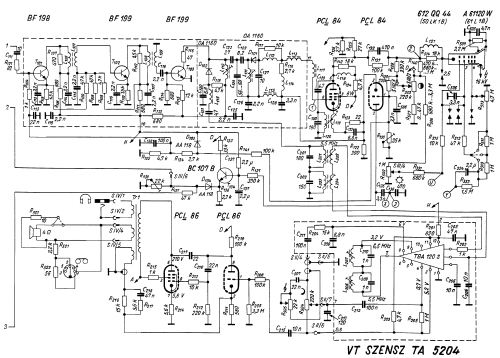

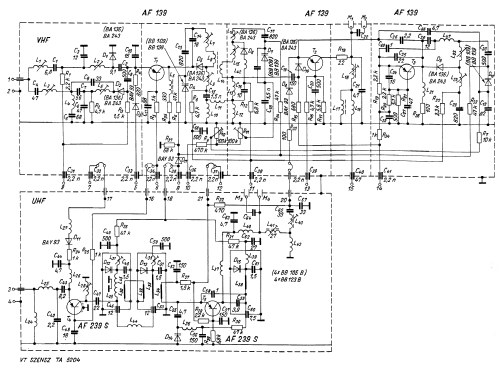

Select picture or schematic to display from thumbnails on the right and click for download.
For model Athene TA-5204, Videoton; Székesfehérvár:

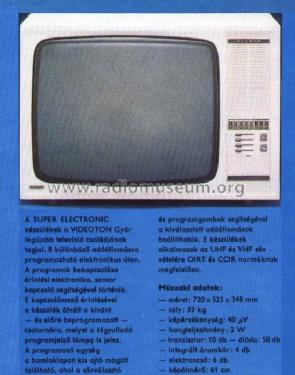

Original prospect.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1978 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: ECC82 PL504 PCL85 PCL85 PCL84 PCL86
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Athene TA-5204 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 720 x 525 x 348 mm / 28.3 x 20.7 x 13.7 inch
Notes OIRT and CCIR, VHF and UHF. 4 IC-s. Screen: 61 cm. 8 sensor preselection knob.
Net weight (2.2 lb = 1 kg) 33 kg / 72 lb 11 oz (72.687 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
