Dália R926A

Dália R926A; Videoton; (ID = 281946) Radio
Dália R926A; Videoton; (ID = 380630) Radio Dália R926A; Videoton; (ID = 287664) Radio
Dália R926A; Videoton; (ID = 688631) Radio Dália R926A; Videoton; (ID = 688626) Radio
Dália R926A; Videoton; (ID = 688628) Radio Dália R926A; Videoton; (ID = 688632) Radio
Dália R926A; Videoton; (ID = 1621187) Radio Dália R926A; Videoton; (ID = 1894680) Radio
Dália R926A; Videoton; (ID = 1894681) Radio Dália R926A; Videoton; (ID = 1894682) Radio
Use red slider bar for more.
Dália R926A; Videoton; (ID = 380630) Radio
Videoton;: Dália R926A [Radio] ID = 380630 300x193
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dália R926A, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EBF80 ECL82 EZ80
Main principle ZF/IF 473,6 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Dália R926A - Videoton; Székesfehérvár
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 190 x 150 mm / 10.2 x 7.5 x 5.9 inch

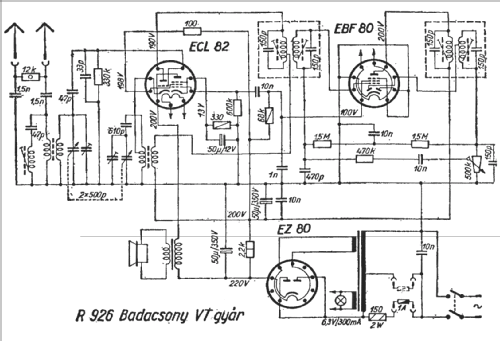

Notes Modell elektrisch gleich wie R926 Badacsony nur moderneres Gehäuse und Skala. Hochinteressante Reflexschaltung.Die NF wird am Schirmgitter der EBF 80 ausgekoppelt, das nur mit 1 nF abgeblockt ist.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 640.00 HUF
Source of data Radio es Televizio Vevö keszülekek 1964-66

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
