EC55

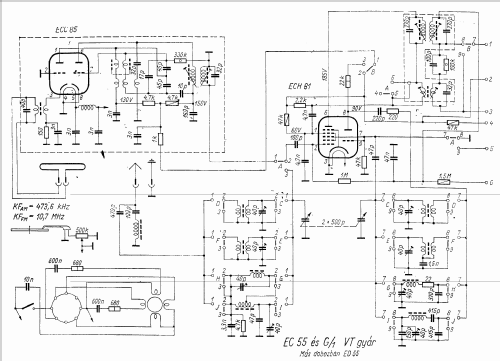

EC55; Videoton; (ID = 409338) Radio

EC55; Videoton; (ID = 409339) Radio
EC55; Videoton; (ID = 471032) Radio EC55; Videoton; (ID = 1184520) Radio
EC55; Videoton; (ID = 1184521) Radio EC55; Videoton; (ID = 1184522) Radio
EC55; Videoton; (ID = 1184530) Radio EC55; Videoton; (ID = 1184531) Radio
EC55; Videoton; (ID = 1264404) Radio
Use red slider bar for more.
EC55; Videoton; (ID = 471032) Radio
Videoton;: EC55 [Radio] ID = 471032 800x348
Select picture or schematic to display from thumbnails on the right and click for download.
For model EC55, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL82 EM80 EZ80
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: EC55 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 315 x 205 mm / 20.9 x 12.4 x 8.1 inch
Notes UKW (OIRT)+(CCIR).
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Radio es Televizio Vevö Keszülekek, 1960-63

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
